Airmar B275LH-W Bronze Chirp Thru-Hull f/Garmin w/12-Pin Connector [B2

Airmar

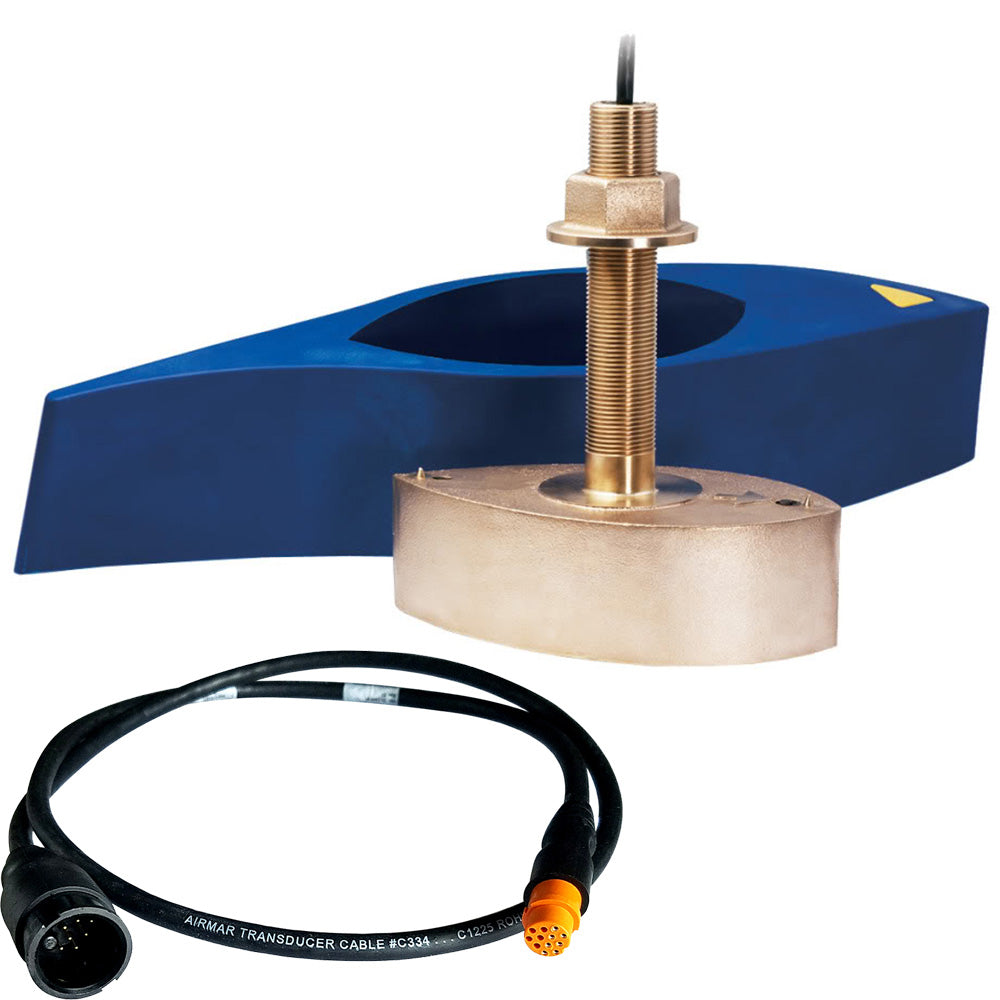

Airmar B275LH-W Bronze Chirp Thru-Hull f/Garmin w/12-Pin Connector [B275C-LHW-12G]

Availability In stock

SKU TO-108760

Product Type Transducers

Brand Airmar

$3,632.00

Quantity:

Subtotal: $3,632.00

Add to Wish List

Description
Shipping + Returns Policy

B275LH-W Bronze Thru-Hull for Garmin with 12-Pin Connector

Get more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready B275LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies, which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500'). The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s Chirp-ready transducers with wide-beam coverage.

The included High-performance Fairing improves broadband results at speeds over 30 knots (34 MPH).

Features:

Garmin 12-Pin Mix & Match Cable for Chirp Transducers
Depth and fast-response water-temperature sensing
1KW of power for great deep-water performance from the low frequency
Low frequency: 42 to 65 kHz
25° to 16° beamwidth
Maximum depth of 914 m (3000')
High frequency: 150 to 250 kHz
25° constant beamwidth
Maximum depth of 152 m (500')
123 kHz of total bandwidth from one transducer
Covers popular fishing frequencies of 50 and 200 kHz, plus everything else in the bandwidth
High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
High wide beamwidth yields more coverage for detecting fish in the upper water column
Bronze housing with High-performance Fairing for optimal performance at higher speeds
Also available as transom (TM275LHW) and pocket (PM275LHW) mounts
Patented Xducer ID® technology

Specifications

Brand: Airmar Technology
Acoustic Window: Urethane
Cable-Length: 10 m (33')
Common Use: Fishing, Commercial Fishing
Connector: Garmin 12-Pin
Country of Origin: USA
Cross Reference: 010-12183-20
Deadrise Range: Up to 28° with fairing
Display Connector: 12G
Frequency Band: Low-High Wide
High Frequency: 150-250 kHz
High-Wide Beamwidth: 25°
Low Frequency: 42-65 kHz
Low Frequency Beamwidth: 25°-16°
Material: Bronze
Max Deadrise: Up to 20° with fairing
Max Depth: Low frequency- 914 m (3000'), High wide frequency- 152 m (500')
Mix and Match Series: 12-Pin Chirp
Sensor Connector: MMC
Single or Dual Frequency: CHIRP-Ready Dual-Band
Tilted Element: No
Weight: 7.3 kg (16 lbs.)
Power Rating: 1 kW
Max Deadrise Angle: 20°
Functions: Depth, Temperature
Hull Material: Fiberglass or wood
Mounting Style: Thru-Hull with Fairing
Max Vessel LOA: 8 m (25') and above
Hole Size: 30 mm (1-3/16")
Usable Shaft Length: 121 mm (4.75")
