Airmar B744VL Bronze Thru-Hull 50/200 600W w/FB 8-Pin f/Garmin [B744V-

Airmar

Airmar B744VL Bronze Thru-Hull 50/200 600W w/FB 8-Pin f/Garmin [B744V-8G]

Availability Out of stock

SKU TO-109056

Product Type Transducers

Brand Airmar

Description
Shipping + Returns Policy

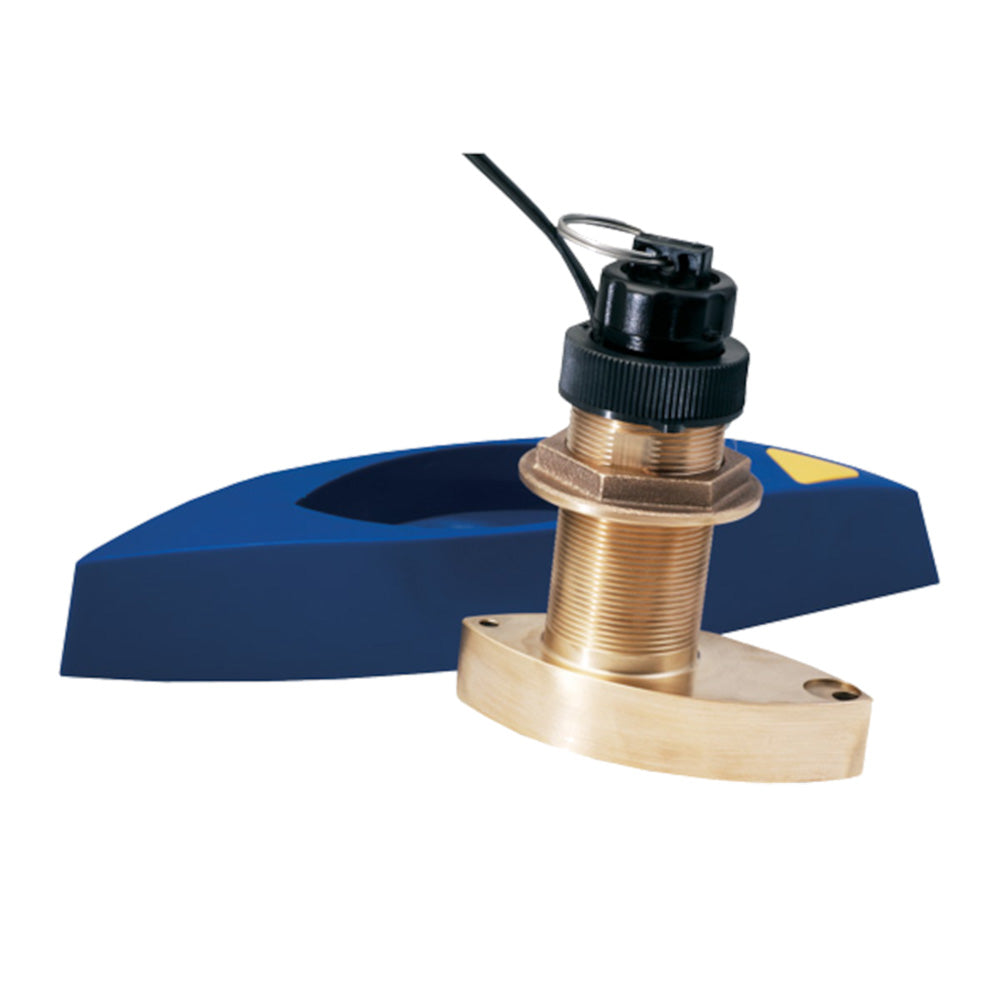

B744VL Bronze Thru-Hull 50/200 600W with FB 8-Pin for Garmin

The B744VL is a TRIDUCER® Multisensor featuring depth, speed, and temperature in a single housing. The 50/200 kHz, dual-frequency, single, ceramic element provides great target detail in shallow water at 200 kHz and good deep-water bottom tracking at 50 kHz. The B744VL’s extended stem length has the extra height needed for steep-deadrise vessels or thick, cored-fiberglass or wood hulls. The required High-performance Fairing gives excellent results at speeds up to 30 knots (34 MPH).

Features:

Depth, speed, and fast-response water-temperature sensing in one housing
600 W of power
Dual-frequency element:
50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
200 kHz with a 12° beamwidth for depth performance to 206 m (700')
Bronze housing with a High-performance Fairing for optimal bottom tracking at higher speeds
Self-closing water valve reduces water flow into the hull when the paddlewheel insert is being replaced with the blanking plug
Fins on the sides of the paddlewheel cavity improve accuracy in cross-flow conditions
The extra-length housing (B744VL) allows mounting in a thicker and/or high-deadrise hull

Specifications:

Power Rating: 600 W
Max Deadrise Angle: 24°
Housing: Bronze
Functions: Depth, Speed, Temperature
Hull Material: Fiberglass or wood
Max Vessel LOA: Up to 9 m (30')
Hole Size: 51 mm (2")
Usable Shaft Length: 121 mm (4.75")
Acoustic Window: Urethane
Common Use: Leisure/Yachting, Fishing
Conventional Beam: 45°/12°
Max Deadrise: Up to 24° with fairing
Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
Mounting Style: Thru-Hull with Fairing
Retractable housing: Yes
Single or Dual Frequency: Conventional Dual Frequency
Tilted Element: No
Weight: 2.5 kg (5.5 lbs.)
